Invisi-Gard® Hinged Security Door

For single door openings, a hinged security door screen is a straightforward way to add home security and protection, enabling external doors to be left open without fear of unwanted intruders. With their standard three-point locking system, and impact and attack resistant 316 mesh, hinged security door screens form an effective barrier to keep a home safe. On the front of a home, a hinged door screen can enhance the overall appearance of the entrance while providing security benefits. Security doors can be colour-matched and powder coated to blend with the existing frame and style. For wooden front doors, an optional timber-grain finish can be applied to complement the natural wood behind. To coordinate with the chosen frame finish, hinges and door closers are available in a range of standard powder coated colours. On side or rear building facades, hinged security door screens are a practical way to secure entrances to high-use utility areas such as laundry rooms. In these locations a locked security hinged door can allow an exterior door to be left open to promote natural ventilation while, for example, the clothes dryer is in use. In all locations around the home, Invisi-Gard’s hinged security doors allow the full appreciation of natural light, air and views, in the comfort of a protected environment.

Supplier: VEROSOL

Without Midrails
Width: Min Width: 300mm, Max Width: 1100mm
Drop: Min Drop: 1900mm*, Max Drop: 2400mm

With Midrails
Width: Min Width: 1100mm, Max Width: 1350mm
Drop: Min Drop: 1900mm*, Max Drop: 2600mm
* Any size under the minimum height does not allow for Tri-Lock & converts door into a single lock (Barrier) door

Security Door Frame: Extruded Aluminium with Extreme Grip Protection
Material: 6063-T5 Architectural Aluminium
Dimensions: 52.5mm W x 19mm H
Colours: Powdercoat: Pearl White Gloss, Surf Mist, Primrose Gloss, APO Grey Satin, Woodland Grey Matt, Monument Matt, Hammersley Brown Satin, AZ Custom Black

Door Lock: Hinged projection bolt security lock
Colours: Black, White, Primrose

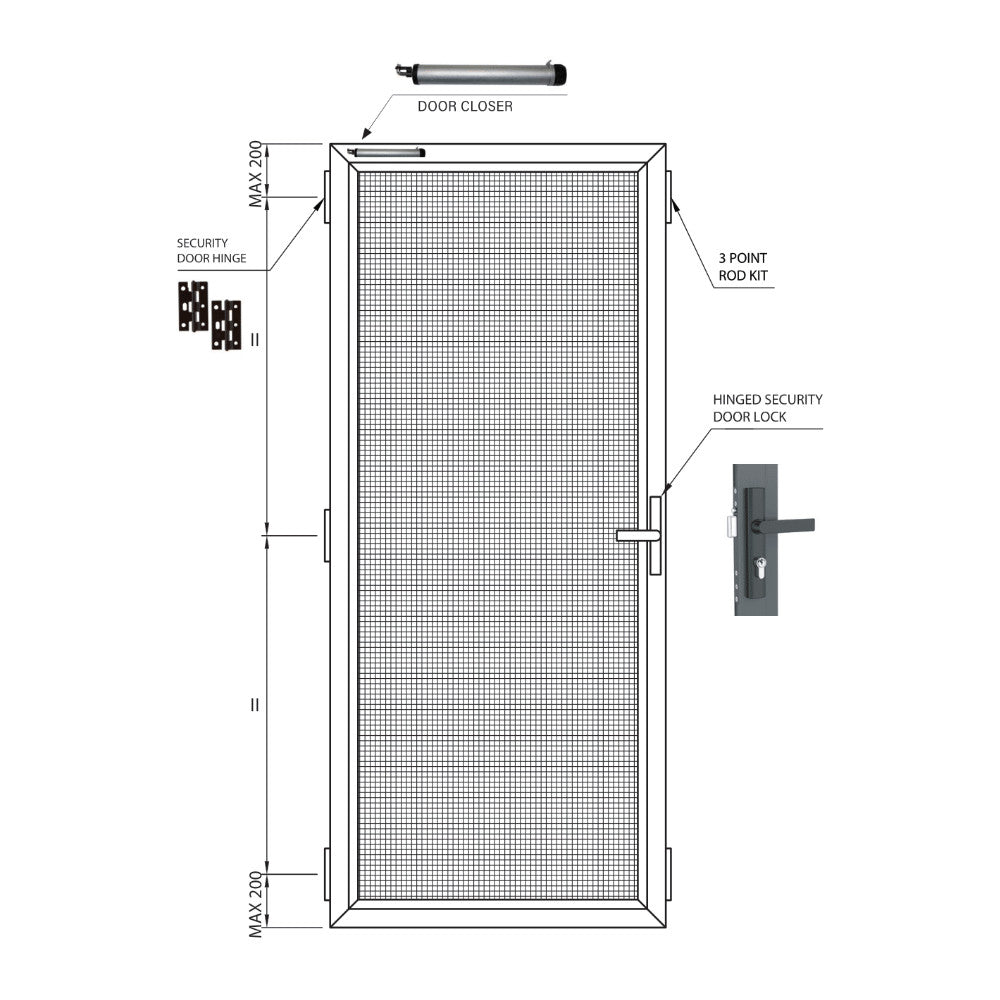

System: Tri-lock 3 point rod kit
Cylinder: 62mm lazy cam cyclinder 2 x 5 pin euro BC

Security Hinges: Stepped Security Door Hinges
: Standard security door uses 3 x stepped security hinges Where height of door >2300mm, door is supplied with 4 x stepped security hinges
Colours: Black, White, Primrose

Optional: Pnuematic Door Closer

Certifications and Standards
Security: Dynamic Impact Test / Jemmy Test - AS5039/5041-2008
Knife Shear Test: Knife Shear Test on Invisi Mesh - AS5039-2008
Bushfire Test: BAL40 Rating for Invisi-Gard - AS1530.8.1
Fire Attenuation: Achieves a fire attenuation rating of up to 55% at 40kW/m2 incident energy - AS1530.4-2014 appendix B7
Corrosion: Corrosion Test - 2,000 hours salt spray test with no sign of corrosion - AS2331.3.1
